41 14 504 Replacing Rear Right Outer Wheel Arch Section Partial Replacement (Side Wall Removed): Notes

Read contents of BODY, GENERAL .

Procedure OBSERVE  repair stage 2!

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

• (1) Side frame, inside rear
• (2) Shaped part, entrance, outer (not shown)

Following CONSUMABLES  are required:

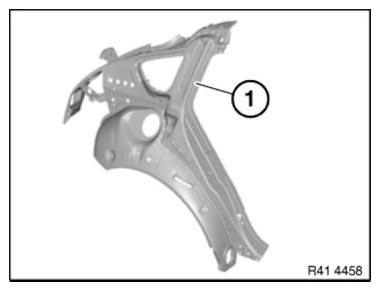

Fig 1: Identifying Inside Rear Side Frame
