41 14 500 Replacing Outer Section Of Left Or Right Rear Wheel Housing (Side Panel Removed): Notes
Follow procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific procedure See 41 00... SPOT-WELD BONDING STEEL COMPONENTS or 41 00... OPENING ADHESIVE BONDS .
Use only approved SPOT-WELDING APPARATUS for repairs!

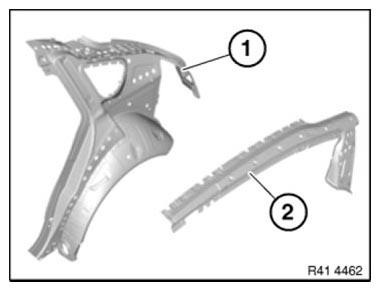

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):
- (1) Side frame, inside rear
- (2) C-pillar reinforcement
- (3) Shaped parts, entrance (not pictured)
