Removing sill section

Mark severance cut in accordance with dimension and cut.

Dimension a = approx. 60 mm from centre point of 20 mm dia. hole.

Open welded connections in areas (1) and (2).

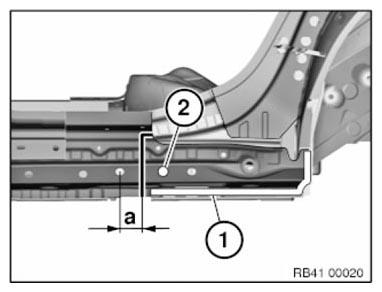

Fig 1: Identifying Dimension Between Centre Point Of Hole To Welded Connection

Courtesy of BMW OF NORTH AMERICA, INC.

(welded connection (2) = reinforcement of jacking point on inside sill)

Remove rear entrance (3).

Installation note:

When installing, replace welded connection (2) with BONDED CONNECTION .

Apply repair welding spots in area (1) to existing welding spots on new component/vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.

Weld in REINFORCEMENT PLATE  at severance cut.
