41 11 300 Replacing Cover For Longitudinal Member With Left And Right Door Pillar (Partial Replacement B-Pillar): Notes

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) B-pillar with entrance
(2) Inside front side frame
(3) Adhesive K1 See 41 00... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOGUE) or 41 00... NOTES ON ADHESIVE K1 (not shown)

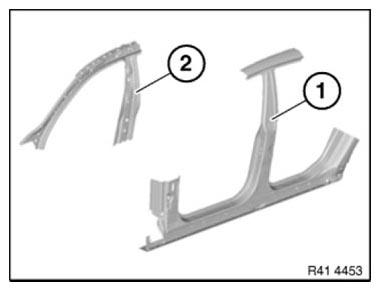

Fig 1: Identifying B-Pillar With Entrance And Inside Front Side Frame

Courtesy of BMW OF NORTH AMERICA, INC.
