Removal of carrier support in front of wheel arch

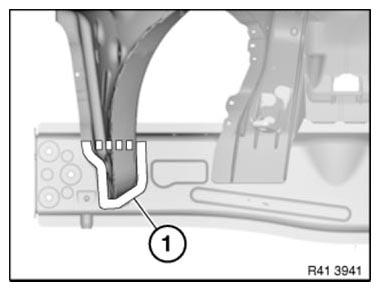

Open welded connections in area (1).

Fig 1: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

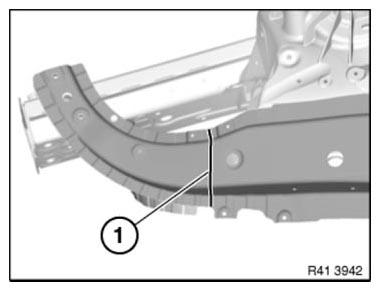

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer panel only.

Fig 2: Identifying Outer Panel Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to spring strut dome!

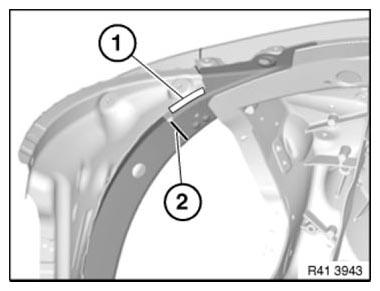

Open welded connections in area (1).

Mark severance cut (2) as pictured and cut.

Fig 3: Identifying Severance Cut And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

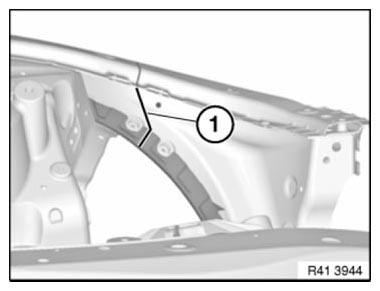

Mark severance cut (1) as pictured and cut.

Remove carrier support section.

Fig 4: Identifying Carrier Support Section Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.
