41 11 095 Replacing Engine Support In Front Of Wheel Arch, Left

Follow procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only APPROVED SPOT-WELDING APPARATUS  for repairs.

Place vehicle on straightening bench.

Necessary preliminary work

REMOVE CARRIER SUPPORT

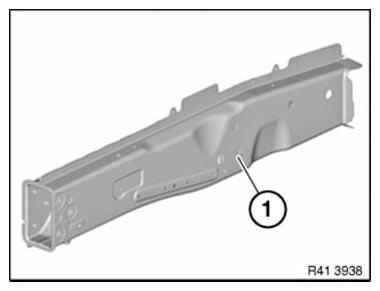

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

• (1) Engine support, front
  Fig 1: Identifying Front Engine Support

  Courtesy of BMW OF NORTH AMERICA, INC.

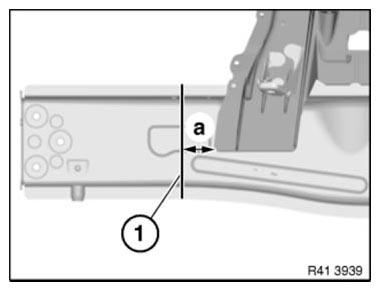

Mark severance cut in accordance with Dimension a and cut.

Dimension a=40 mm before wheel arch edge.

Remove section of engine support.

Installation note:

Mark severance cut on new part in accordance with vehicle and cut.

Adjust new part to fit with alignment bracket or universal mount.

Weld in REINFORCEMENT PLATE  at severance cut.
