Removal of engine support

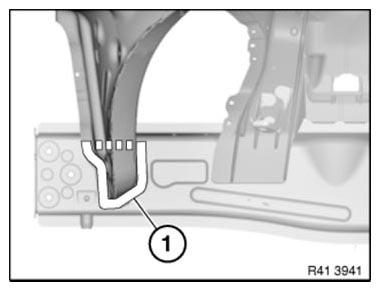

Open welded connections in area (1).

Fig 1: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

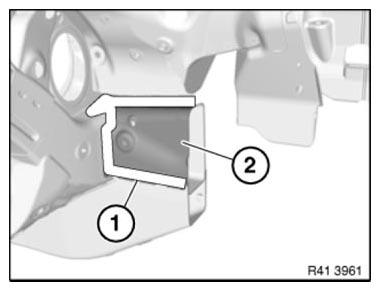

Drill out rivet connections in areas (1) and (2).

IMPORTANT: Do not damage aluminium spring strut dome!

Drill diameter max. 6.8 mm.

Fig 2: Identifying Rivet Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

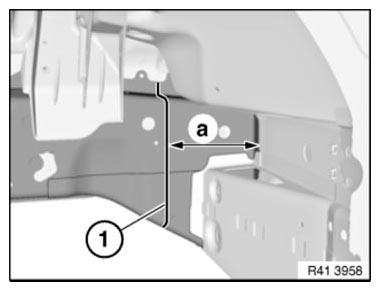

Mark severance cut (1) in accordance with dimension a and cut engine support.

Dimension a=140 mm

Fig 3: Identifying Engine Support Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

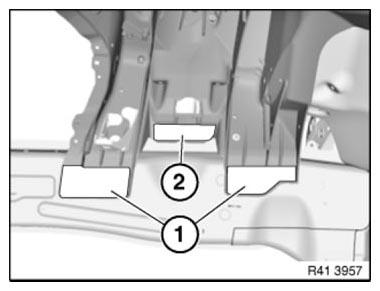

Roughly mark severance cuts (1) and cut.

IMPORTANT: Do not damage aluminium spring strut dome (2)!

Fig 4: Identifying Aluminium Spring Strut Dome And Severance Cuts

Courtesy of BMW OF NORTH AMERICA, INC.

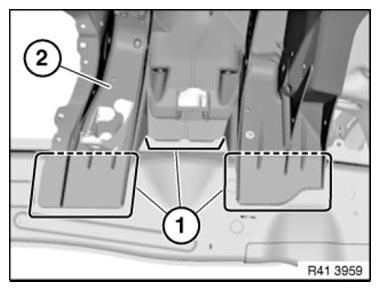

Heat ADHESIVE AREAS with hot air blower and release sheet sections (1) from spring strut dome.

IMPORTANT: Do not damage aluminium spring strut dome (2)!

Fig 5: Identifying Aluminium Spring Strut Dome And Sheet Sections

Courtesy of BMW OF NORTH AMERICA, INC.

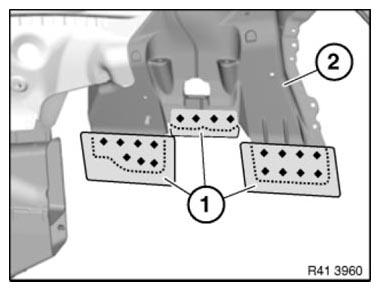

Open welded connections in area (1) and remove engine support section (2).

Fig 6: Identifying Engine Support Section And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.
