41 11 091 Replacing Engine Support In Front Of Bulkhead, Left: Notes
Observe procedure of REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Steel-aluminium composite construction is used on the vehicle.
Observe specific procedure See 41 00... OPENING ADHESIVE BONDS , 41 00... BONDING ALUMINIUM ON STEEL or 41 00... OPENING RIVETED JOINTS .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

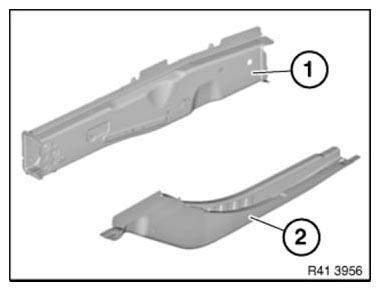

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):
- (1) Engine support
- (2) Engine support, rear
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 19 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
