Installing engine support
Clean bonding surfaces with cleaning agent R1.
Apply adhesive K1 to bonding surfaces.
Install new parts and reinforcement plates with alignment bracket or universal mount.
Using blind rivets, rivet new parts in the areas where the rivets are fitted with adhesive N2.
Weld new parts identically to the series in the other gap areas.

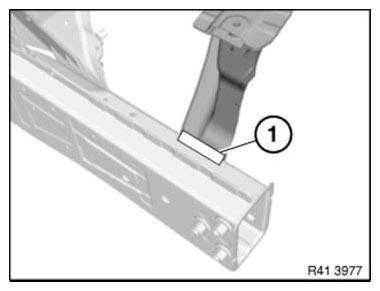

MAG-weld new part in area (1).
To do so, apply 2 fillet welds at spacing of 15 mm. Length of fillet welds approx. 15 mm.
