41 34 038 Replacing Outer Tail Panel Section: Notes
Read contents of BODY, GENERAL .
Observe (REPAIR STAGE 2) procedure!
STRIP DOWN vehicle
The following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

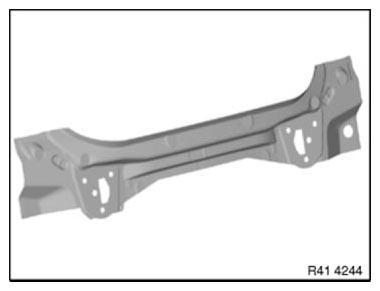

- (1) Rear trim panel
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| R1 cleaning agent | 1 |
| Blind rivets N3 | 37 |
| Punch rivets N4 | 20 |
| EMC screws | 10 |
| Sealant D1 | |
| Cavity wax remover |
