41 62 541 Removing And Installing/Replacing Both Hinges For Tailgate Lower Section (Tailgate Lower Section Removed)
Read contents of BODY, GENERAL .
Operation is described on the left side.
Right side identical.

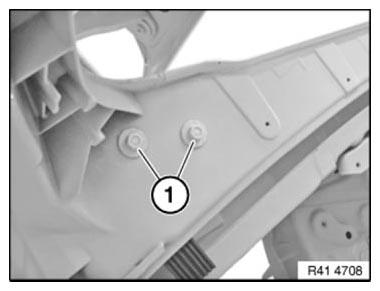

Release screws (1).
Remove hinge.
Installation note:
Tightening torque 41 62 5AZ .
Adjust rear lid on the basis of the 41 00... BODY GAP DIMENSIONS .
