41 62 007 REMOVING AND INSTALLING REAR LID LOWER SECTIOn

Read contents of BODY, GENERAL .

Necessary preliminary tasks

• Disconnect all plug and socket cable connections on rear lid bottom section.

Operation is described on the left side.

Right side identical.

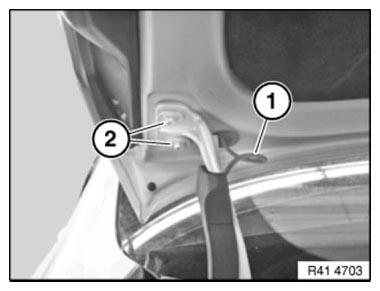

Pull wiring harness (1) out of tailgate lower section.

Release screws (2) and remove tailgate lower section with second person.

Tightening torque 41 62 4AZ .

Installation note:

Install tailgate at screw locations on hinge.

This dispenses with the need for adjustment after installation.

If necessary, adjust REAR TRUNK LID .

If reversing camera optional equipment installed:

Calibrate REVERSING CAMERA .
