41 12 557 Replacing Luggage Compartment Floor, Middle Section (Tail Panel Removed): Notes

Read contents of BODY, GENERAL .

Observe procedures for (REPAIR STAGE 3) !

STRIP DOWN VEHICLE

Use only approved SPOT-WELDING APPARATUS  for repairs.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

• (1) Luggage compartment floor, rear
• (2) Reinforcement, side member

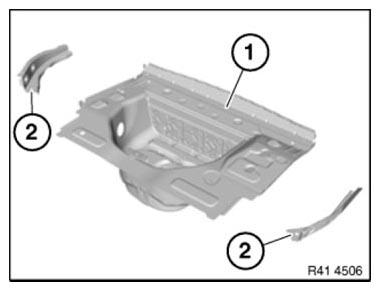

  Fig 1: Identifying Side Member Reinforcement And Rear Luggage Compartment Floor

  Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES  are required:
