41 12 535 Replace Luggage Compartment Floor And Both Side Members (Tail Panel Trim Removed): Notes
Read contents of BODY, GENERAL .
Observe procedure of REPAIR STAGE 3 .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

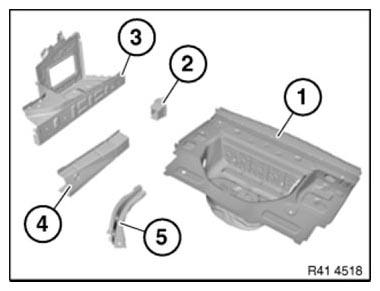

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):
- (1) Luggage compartment floor, rear
- (2) Fixture, bumper, left and right
- (3) Luggage compartment floor, left and right
- (4) Extension, side member, left and right
- (5) Reinforcement, side member, left and right
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 53 |
| Blind rivets N1 | 4 |
| EMC screws | 2 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
