41 61 050 Removing And Installing/Replacing Left Or Right Hinge For Engine Compartment Lid (Engine Compartment Lid Removed)

WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.

Position suitable cloth under engine compartment lid without gaps.

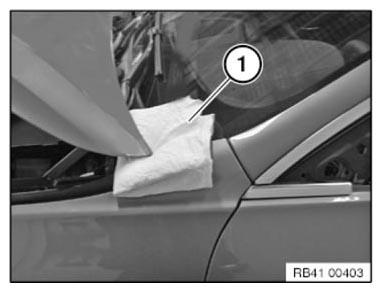

Fig 1: Positioning Of Cloth Under Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: After nuts have been slackened no lateral forces must be exerted on the engine compartment lid!

Unscrew nuts (1).

Tightening torque 41 61 1AZ .

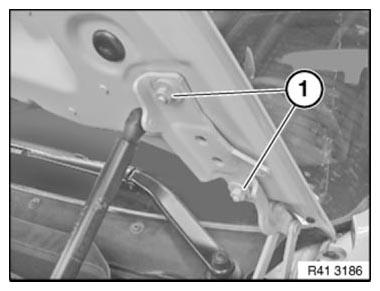

Fig 2: Identifying Engine Compartment Lid Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove hinge.

Installation note:

Tightening torque 41 61 3AZ .

ADJUST hinge together with engine compartment lid.

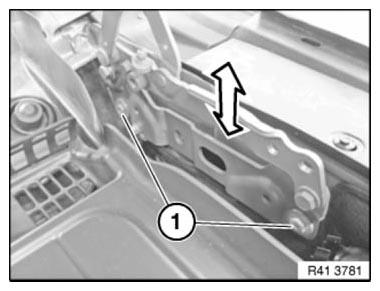

Fig 3: Adjusting Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.
