41 61 001 Replacing Engine Compartment Lid
WARNING:
Risk of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Support engine compartment lid in fully opened position with suitable apparatus.
IMPORTANT:
Removal of the engine compartment lid must be carried out with the assistance of a second person.

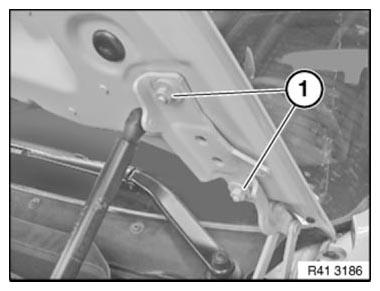

Unscrew nuts (1).
Remove engine compartment lid.
Installation:
Install engine compartment lid at screw locations to on hinge.
Tightening torque 41 61 1AZ .
If necessary, adjust ENGINE COMPARTMENT LID .
