Stamping second vehicle identification number

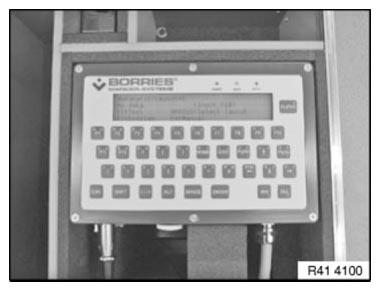

Display input:
- Select Layout 2 with arrow button.
- Press "ENTER" button.
NOTE:
With Layout 2 the already entered vehicle identification number is stamped in line 2.

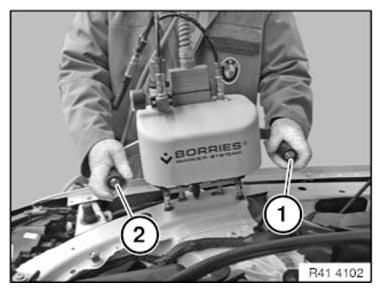

Start stamping operation with pushbutton (2).
After the stamping operation, if necessary adapt engine compartment lid seal locator of second vehicle identification number.
Following layout functions are available:
| Layout selection | Vehicle identification number |
|---|---|
| Layout 1 | In line 1 |
| Layout 2 | In line 2 |
| Layout 3 | Turned through 180° in line 1 |
| Layout 4 | Turned through 180° in line 2 |
| Layout 5 | Cross through in line 1 |
| Layout 6 | Cross through in line 2 |
