Protection measures!

IMPORTANT: To prevent the material from tapering, do not drill out the rivet head.

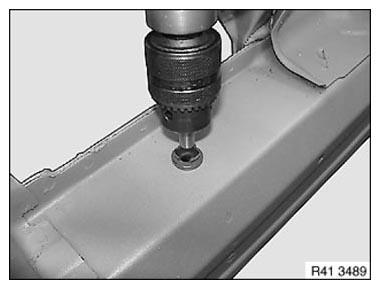

Carefully spot-drill rivet head with a larger drill bit/countersink

Fig 1: Drilling Rivet Head Using Larger Drill Bit/Countersink
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid paintwork damage

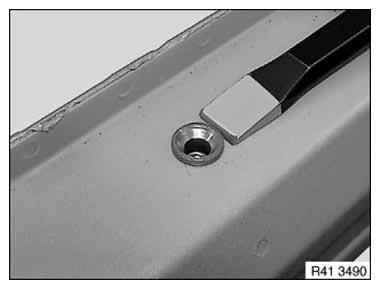

Knock rivet head away with a chisel

Fig 2: Knocking Rivet Head Using Chisel
Courtesy of BMW OF NORTH AMERICA, INC.

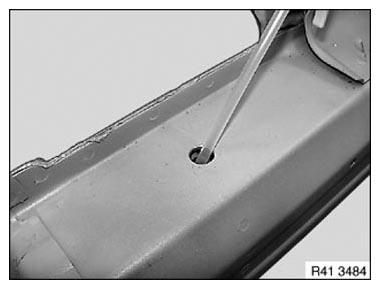

Drive through rivet shank into cavity, remove if necessary

Fig 3: Driving Rivet Shank Into Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

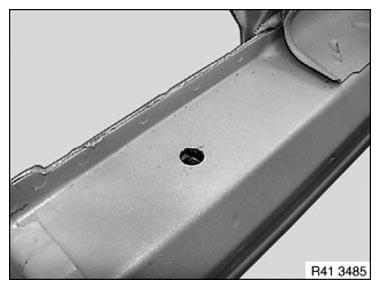

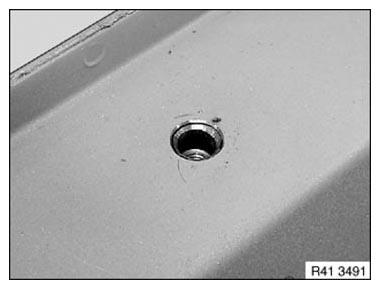

Clean component, eliminate paintwork damage if necessary

Fig 4: Identifying Paintwork Damage Area
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank can be removed:

IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity sealing.
Follow INSTRUCTIONS ON CORROSION PROTECTION .
Preserving cavity

Fig 5: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

If the rivet shank cannot be removed:

WARNING: Risk of injury!
Observe NOTES ON CAVITY FOAM .

IMPORTANT: To avoid corrosion and rattling noises, stop chips/swarf and rivet nut shank with cavity foam.

Fig 6: Preserving Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

Remove foam remnants with isohexane (benzine).
Stop rivet shank by means of specific foaming
Set rivet nut with hand rivet gun
NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.
