Procedure for using universal reinforcement plate

The universal reinforcement plate needs to be adapted. The plate must be divided if the distance between the pins is too great.

Dimension a is between 40 and 80 mm depending on the space available.

Secure plates with N4 punch rivets.

NOTE: Ensure the rivet is positioned correctly!
Rivet head is on the adhesion side!

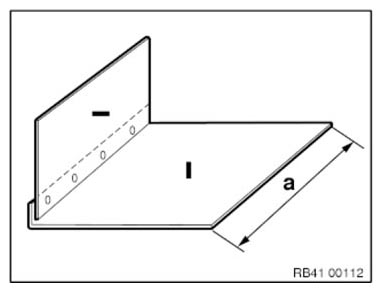

Fig 1: Identifying Universal Reinforcement Plate Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the plate to the inside of the flange!
