41 00... Reinforcement Plate (Bonded): Notes

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They apply to sectional repairs to the structure.

Mark component in accordance with measurement a and cut.

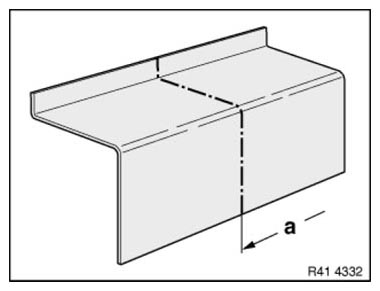

Fig 1: Identifying Reinforcement Plate Cutting Length

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Cut new part (1) in accordance with cut on vehicle and if necessary adjust to fit with straightening attachment or universal mount.

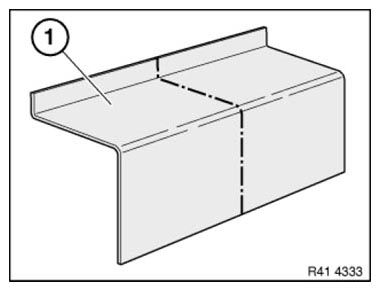

Fig 2: Identifying Reinforcement Plate Cutting Part

Courtesy of BMW OF NORTH AMERICA, INC.

Make reinforcement plate (1) from trim of new part (2).

Length of reinforcement plate is 80 mm.

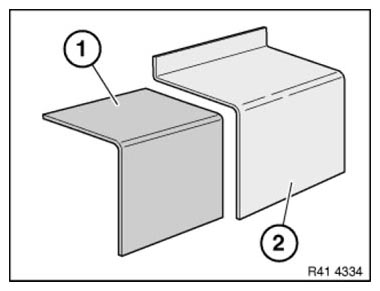

Fig 3: Identifying Reinforcement Plate And Cutting Part

Courtesy of BMW OF NORTH AMERICA, INC.

Slide reinforcement plate (1) half-way into component on body and fasten with 2 self-tapping screws (2).

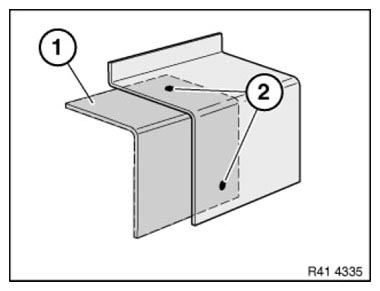

Fig 4: Identifying Tapping Screws On Overlap Area

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part (1) to fit and set 4.3 mm dia. bore holes (2).

Remove new part again.

Release self-tapping screws (3).

Remove reinforcement plate.

Drill out bore holes (3) for screws to 4.3 mm dia.

Deburr all bore holes.

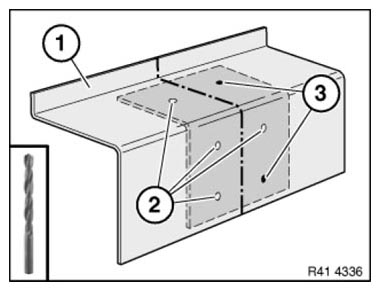

Fig 5: Identifying Tapping Screws And Bore Hole On Overlap Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.
