Front End Top View

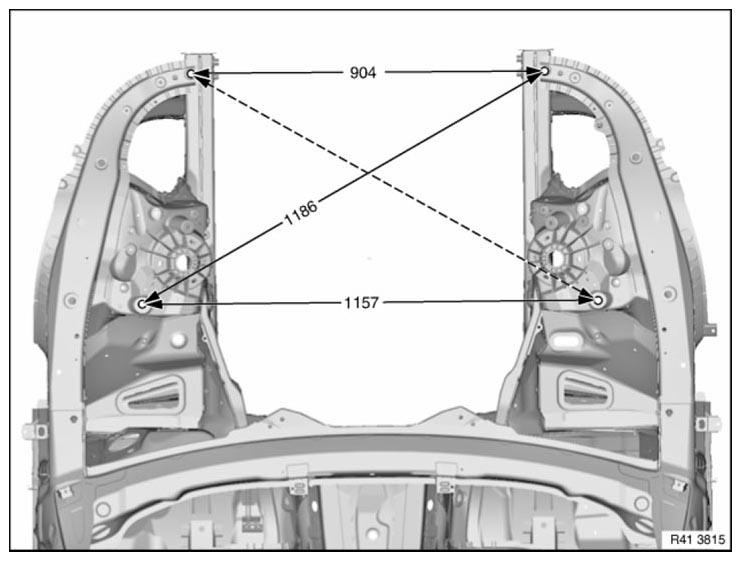

Fig 1: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Front End Top View)
G08423484Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.
