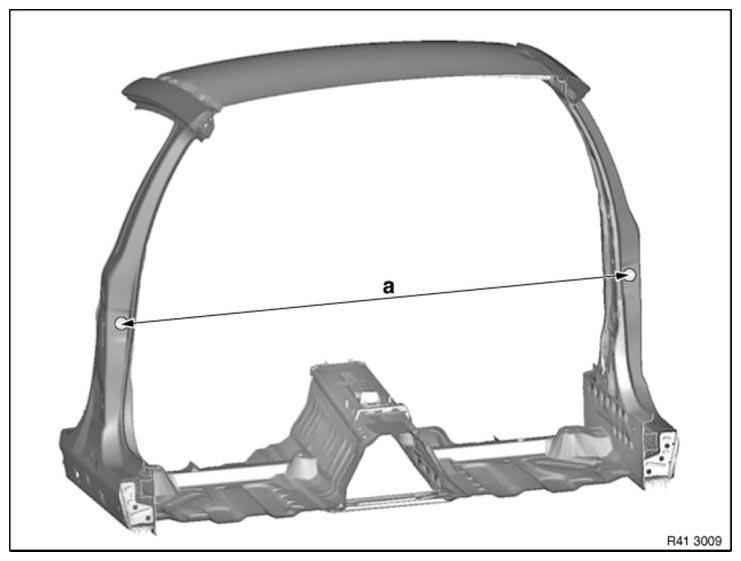

B-Pillar View

G08423485

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1628 mm between screw-on points of door brakes.
