Dimensions in mm

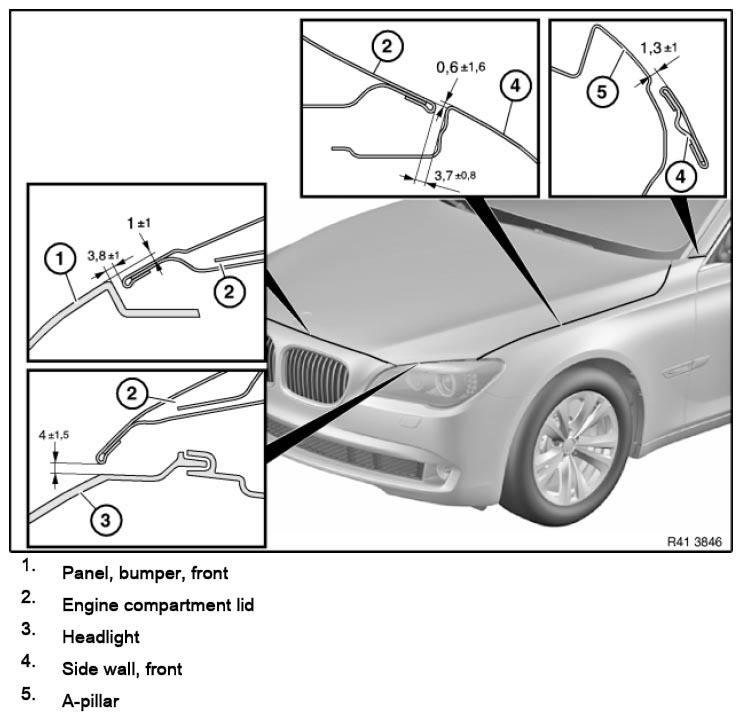

Fig 1: Front Bumper, Hood, Front Fender, Head Lamp And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

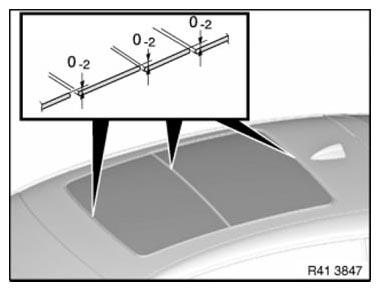

Fig 2: Roof Panel And Moon Roof Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

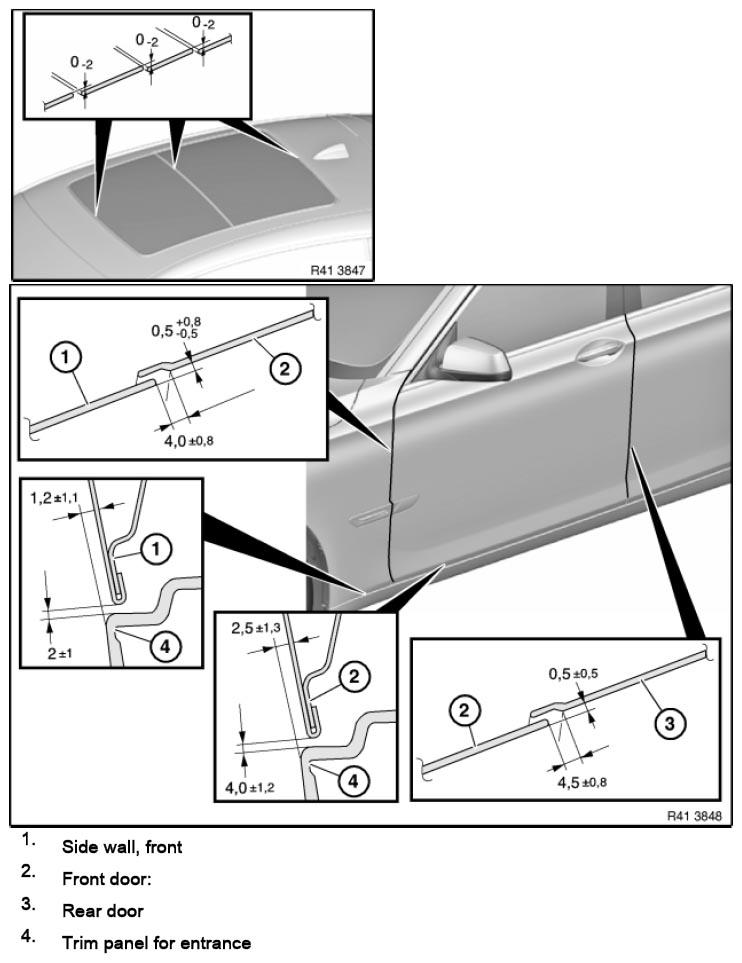

Fig 3: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

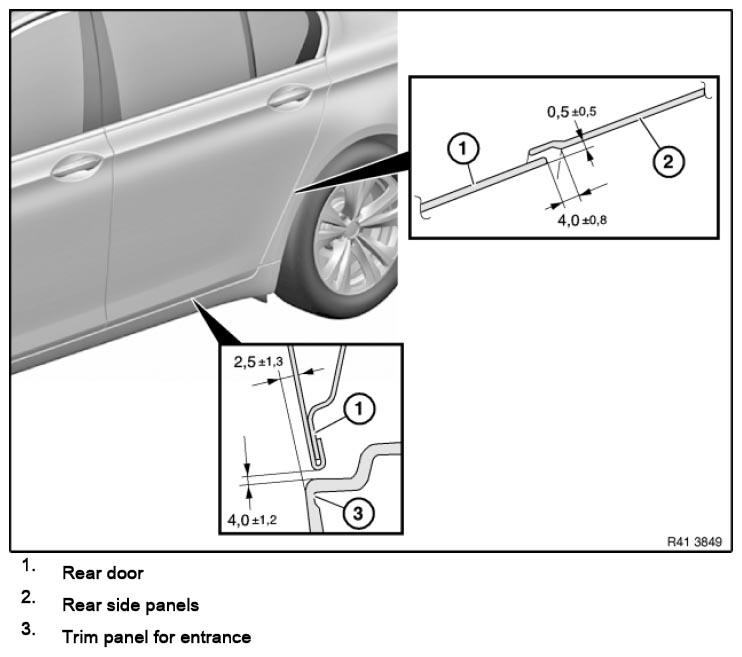

Fig 4: Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

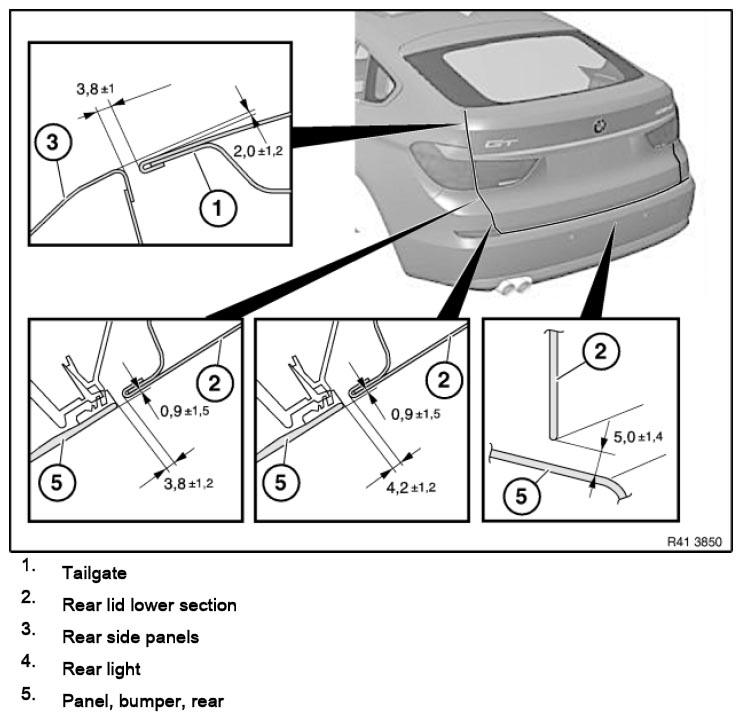

Fig 5: Tail Gate, Quarter Panel, Rear Bumper And Tail Lamp Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
