System Overview

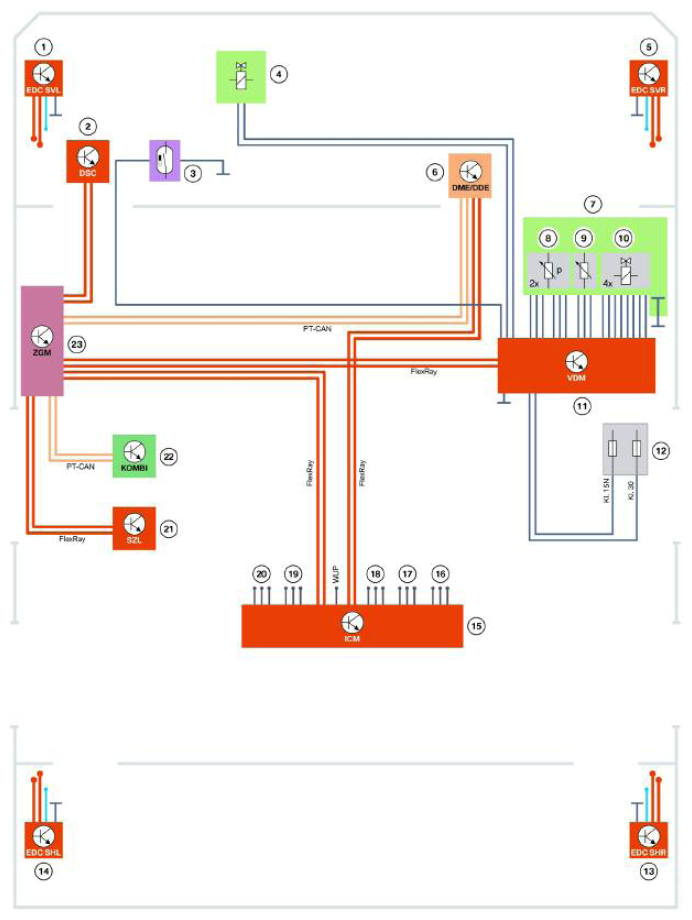

Fig 1: F07 System Wiring Diagram Adaptive Drive

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Electronic Damper Control satellite front left
2	Dynamic Stability Control
3	Oil level sensor hydraulic oil
4	Suction throttle valve
5	Electronic Damper Control satellite front left
6	Digital Motor Electronics/Digital Diesel Electronics
7	Valve block Dynamic Drive
8	Pressure sensor front axle/pressure sensor rear axle
9	Shift-position sensor
10	Fail-safe valve, direction valve and pressure valve
11	Vertical Dynamics Management
12	Power distribution box front
13	Electronic Damper Control satellite rear right
14	Electronic Damper Control satellite rear left
15	Integrated Chassis Management
16	Ride height sensor rear left
17	Ride height sensor front left
18	Ride height sensor front right
19	Ride height sensor rear right
20	Connection dynamic drive control switch
21	Steering column switch cluster
22	Instrument panel
23	Central gateway module

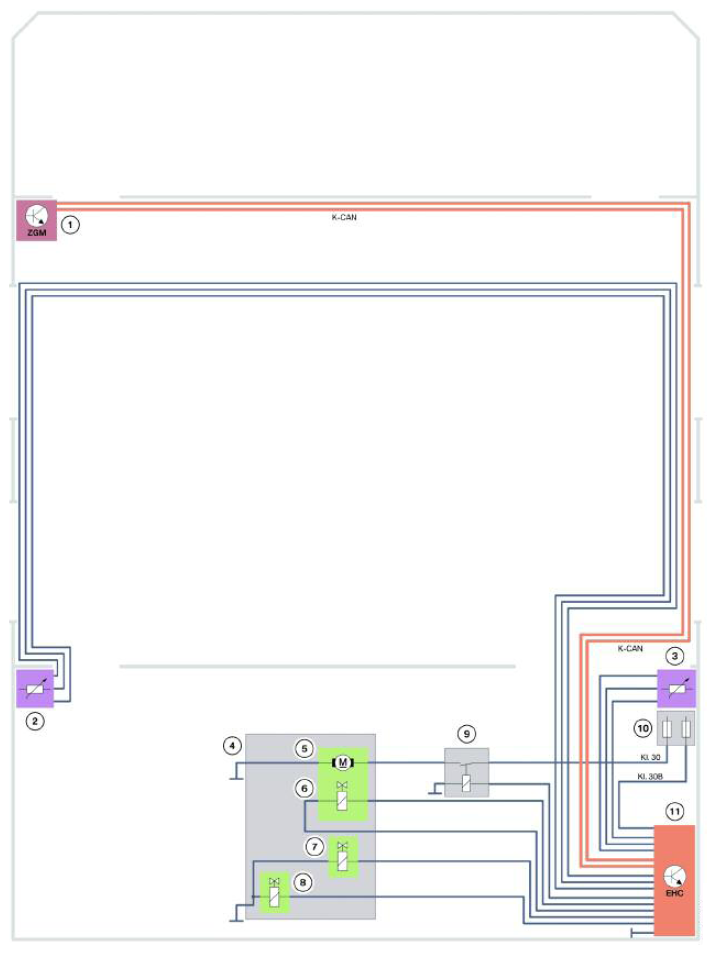

Fig 2: F07 System Wiring Diagram Electronic Ride Height Control

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Central gateway module
2	Ride height sensor rear left
3	Ride height sensor rear right
4	Air supply system
5	Compressor
6	Solenoid valve, left side
7	Solenoid valve, right side
8	Discharge valve
9	Relay air supply system
10	Power distribution box rear
