Front Axle: Notes
The double-wishbone front axle introduced with the E70/E71 is used in a further improved design in the F01 and F07. The axle is especially equipped for the use of an all-wheel drive.

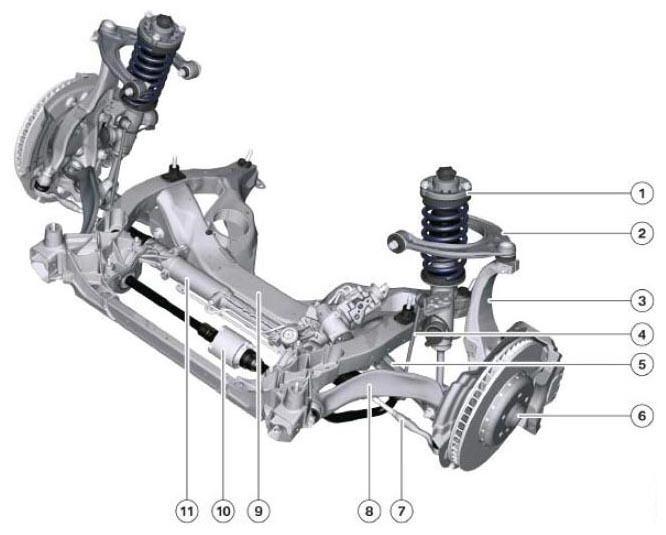

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Spring strut |
| 2 | Wishbone top |
| 3 | Swivel bearing |
| 4 | Anti-roll bar link |
| 5 | Wishbone bottom |
| 6 | Wheel bearing |
| 7 | Track rod |
| 8 | Trailing link with hydro mount |
| 9 | Front axle support |
| 10 | Anti-roll bar with hydraulic swivel motor (Dynamic Drive) |
| 11 | Steering box |
Conventional dampers are installed as standard equipment or EDC is available with the Sport Package Option. The steering box can be completely lowered to facilitate service.
F07 TECHNICAL DATA
| Designation | Specification |
|---|---|
| Caster angle | 7° |
| Camber | -12' ± 30' |
| Total toe-in | 12' ± 12' |
| Toe difference angle | 12' |
| Steering axis inclination | 10° |
| Rim offset | 30 mm for 18" 25 mm for 19", 20" |
| Kingpin offset | 0.5 mm for 18" 5.5 mm for 19", 20" |
| Track width | 1611 mm for 18" 1621 mm for 19", 20" |
| Maximum steering lock angle (Outer) | 33° 38' |
| Maximum steering lock angle (Inner) | 43° 40' |
