Chassis and Suspension: Notes

The chassis of the F07 is based on that of the F01, which has set new standards for driving dynamics and comfort. The chassis of the F07 was adapted to these standards.

Innovations such as Integral Active Steering, Integrated Chassis Management, Dynamic Drive and Electronic Damper Control, which are features of the F01, are also integrated in the F07.

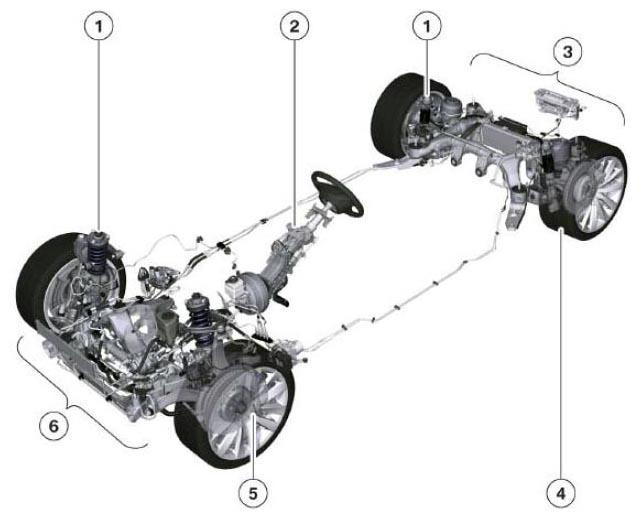

Fig 1: Identifying F07 Chassis Components

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Suspension/damping
2	Steering
3	Rear axle
4	Wheels
5	Brakes
6	Front axle
