Driving Stability Control Systems: Notes

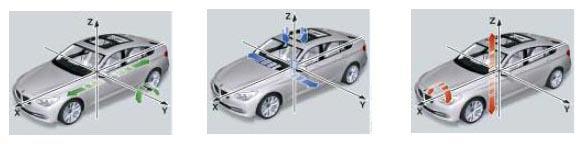

The driving stability control systems can be distinguished by the direction in which they act. DSC systems can act both in and around an axle of the vehicle-specific coordinates system X, Y and Z.
AXLE VEHICLE-SPECIFIC COORDINATES REFERENCE
| Direction of action | Longitudinal | Pitch | Transverse | Yaw | Vertical | Roll |
|---|---|---|---|---|---|---|
| DSC | • | • | ||||
| Integral Active Steering | • | • | ||||
| VDM | • | • | ||||
| DCC | • | |||||
| Dynamic Drive | • |
