Dynamic drive control switch

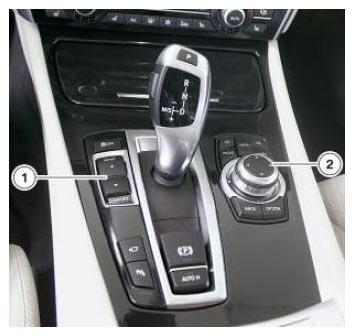

Fig 1: Identifying F07 Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Dynamic drive control switch
2	Controller

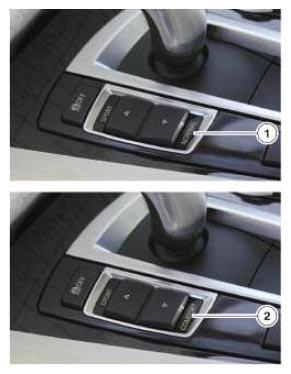

Fig 2: Identifying F07 Dynamic Drive Control Switch

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

Index	Explanation
1	Dynamic drive switch on vehicles without Adaptive Drive
2	Dynamic drive switch on vehicles with Adaptive Drive

All drive and dynamic drive systems in the F07 are also influenced together by the dynamic drive control switch. The operating principle is the same as in the F01. Four levels are available in vehicles with Adaptive Drive (SA 2VA). In vehicles without Adaptive Drive (SA 2VA) there is no "Comfort" level, i.e. three levels are available. The dynamic drive control switch is then labelled "Normal". Three different modes of DSC can also be set.

The Sport mode can be adjusted with the controller.

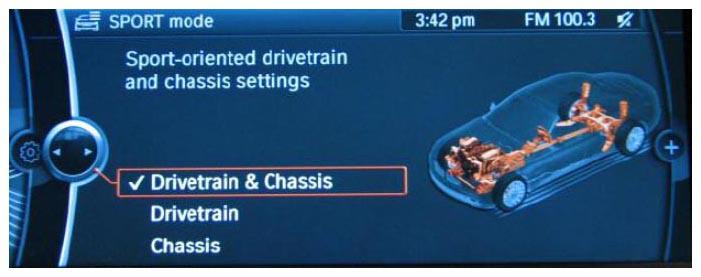

Fig 3: Display - F07 Sport Mode Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

It can be specified whether the Sport mode should be activated only for the chassis and suspension, only for the drive, or for both together.

DYNAMIC DRIVE CONTROL SWITCH FOR EQUIPMENT WITHOUT ADAPTIVE DRIVE

	Normal	Sport	Sport+
Drive systems
Accelerator pedal characteristic curve	Normal	Sport	Sport
Shift program	Normal	Sport	Sport
Shift speed	Normal	Sport	Sport
Suspension control systems
Steering servo	Normal	Sport	Sport
Integral Active Steering	Normal	Sport	Sport
Dynamic Stability Control	DSC on	DSC on	DTC

DYNAMIC DRIVE CONTROL SWITCH FOR EQUIPMENT WITH ADAPTIVE DRIVE

	Comfort	Normal	Sport	Sport+
Drive systems
Drive systems Accelerator pedal characteristic curve	Normal	Normal	Sport	Sport
Shift program	Normal	Normal	Sport	Sport
Shift speed	Normal	Normal	Sport	Sport
Suspension control systems
Steering servo	Normal	Normal	Sport	Sport
Integral Active Steering	Normal	Normal	Sport	Sport
Dynamic Stability Control	DSC on	DSC on	DSC on	DTC
Electronic Damper Control	Comfort	Normal	Sport	Sport
Dynamic Drive	Normal	Normal	Sport	Sport

NOTE: Adaptive Drive and all the systems listed on the previous chart are only available with the ZSP Sport Package option.
