52 26 000 Removing and installing/replacing left or right rear seat

Unclip trim (1) with plastic wedge on upper part to the front.

Installation:

If necessary, replace faulty trim.

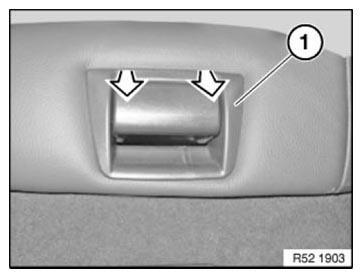

Fig 1: Unclipping Trim With Plastic Wedge On Upper Part To Front

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lever for backrest adjustment and release screw (1) below.

Tightening torque 52 26 07AZ.

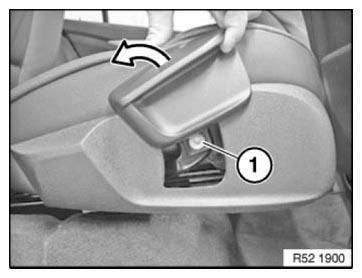

Fig 2: Removing Cover For Backrest Angle Adjustment On Left Or Right

Courtesy of BMW OF NORTH AMERICA, INC.

Right rear seat:

Unclip rear seat to the front and pull up.

Installation:

Pull belt buckle through recess in rear seat.

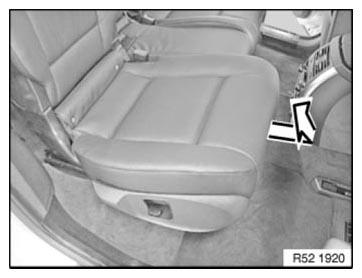

Fig 3: Pulling Belt Buckle (Right Rear Seat)

Courtesy of BMW OF NORTH AMERICA, INC.

Left rear seat:

Unclip rear seat to the front and pull up.

Installation:

Pull belt buckle through recess in rear seat.

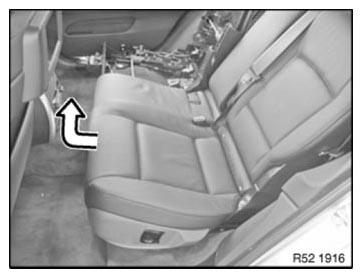

Fig 4: Pulling Belt Buckle (Left Rear Seat)

Courtesy of BMW OF NORTH AMERICA, INC.

Optional equipment with seat heating only:

NOTE: For a better overview, the control unit is shown removed.

Unfasten plug connection (1) and disconnect.

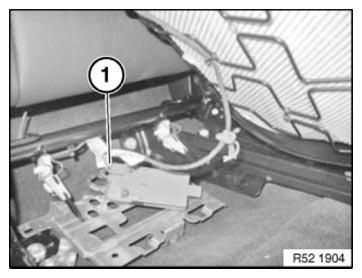

Fig 5: Identifying Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
