51 32 211 Replacing front left or right rubber guide for left or right door window

Necessary preliminary tasks

• Remove REAR-VIEW MIRROR  on front door.
• Remove door trim panel .
• Remove acoustic insulation  in front area.

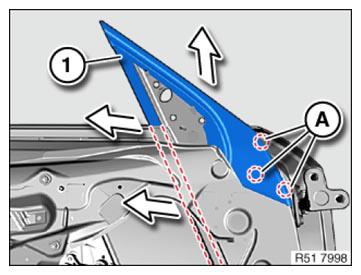

Detach rubber guide (1) in area (A) from door.

Pull rubber guide (1) out of window guide rail and remove towards top.

Installation:

Moisten rubber guide (1) with water before fitting.

Slide rubber guide (1) from above into window guide rail and if necessary retighten at bottom.

Make sure rubber guide (1) is correctly seated on door and door window glass.

Installation:

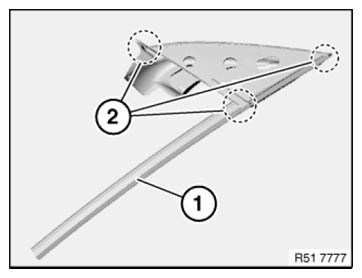

Rubber guide (1) must not be damaged in corners (2).

5132211 Replacing front left or right rubber guide for left or right door window
