51 45.. Overview of dashboard

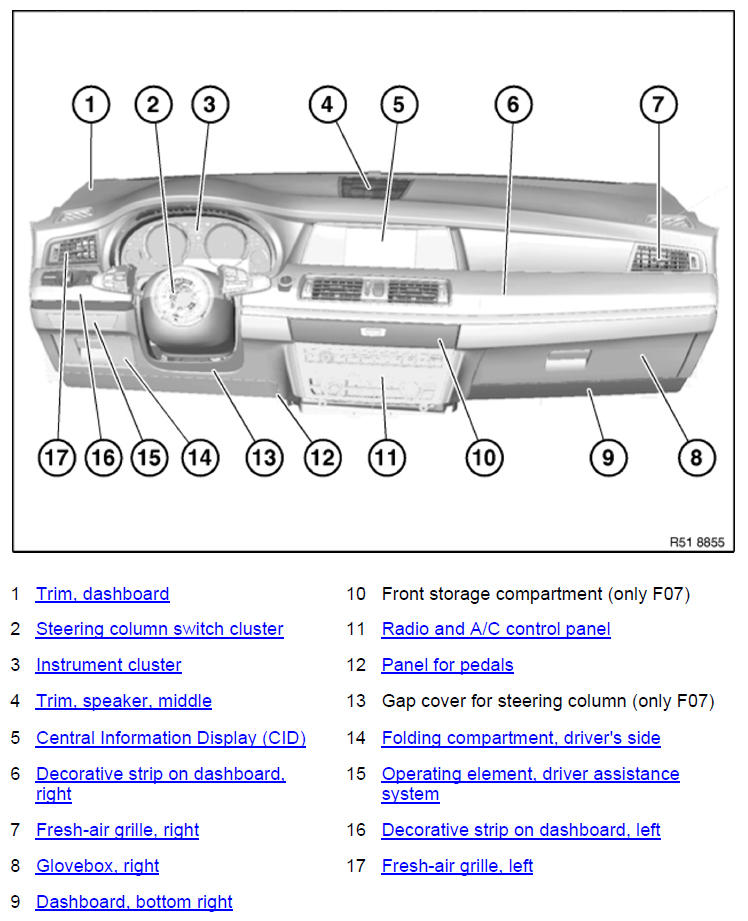

Fig 1: Overview Of Dashboard
G09926354Courtesy of BMW OF NORTH AMERICA, INC.

Graphic for example purposes only (graphic used for F07)
