17 11 035 Removing And Installing/Replacing Fan Cowl With Electric Fan (N55 hybrid)

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

Necessary preliminary tasks:

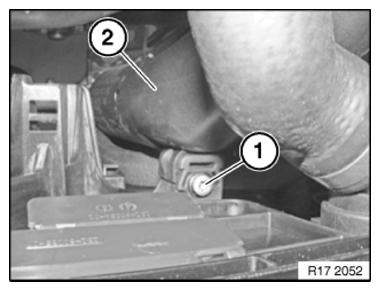

Release screw (1) on fan cowl.

Tightening torque: 17 10 4AZ .

Detach charge-air duct (2) from fan cowl.

Fig 1: Charge-Air Duct And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

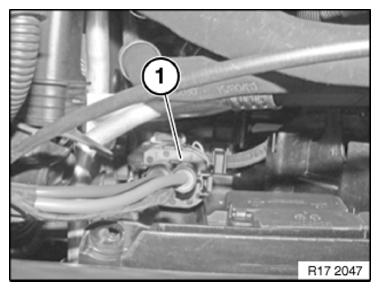

Unlock and disconnect connector (1) on fan cowl on right.

Fig 2: Connector On Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

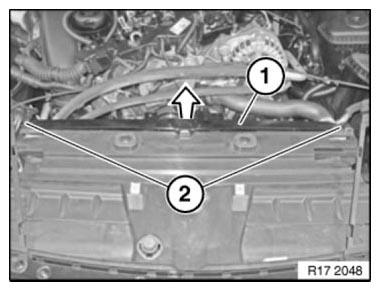

Unclip fan cowl (1) at clamps (2) on left and right, thread out in upward direction and remove.

Fig 3: Unclipping Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert retaining tab (1) at bottom on module carrier.

Fig 4: Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
