17 11 016 Removing And Installing/Replacing Right Auxiliary Coolant Cooler (S63 B44 T 0)
Necessary preliminary tasks:
- Remove the right FRONT SECTION OF THE WHEEL ARCH COVER .
- Drain coolant for charge air cooler.
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Wear safety goggles and protective gloves.
Recycling:
Coolant emerges when coolant lines are detached. Catch and dispose of escaping coolant in a suitable container.
Observe country-specific waste disposal regulations.

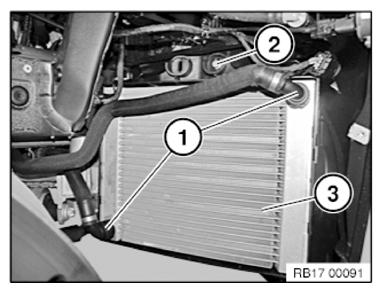

Detach coolant lines (1).
Catch and dispose of escaping coolant.
Release screw (2).
Tightening torque: 17 10 5AZ .
Removing auxiliary coolant cooler (3).
Installation note:
Check coolant hoses for damage.
NOTE:
After completion of repair work, check coolant level.
Fill and bleed COOLING SYSTEM for charge air cooler.
Reassemble the vehicle.
Fill and bleed COOLING SYSTEM for charge air cooler.
Reassemble the vehicle.
