51 12 315 Removing and installing/replacing rear diffuser

Support the diffuser.

Undo the screws and remove the diffuser.

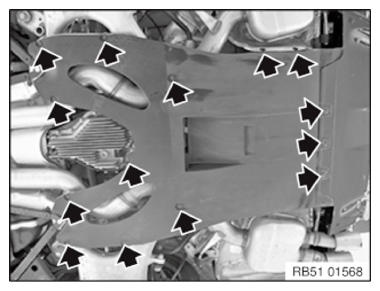

Fig 1: Locating Diffuser Screws

G09925797

Courtesy of BMW OF NORTH AMERICA, INC.
