66 20 515 Removing and installing/replacing a front left ultrasonic transducer (PDC)

Release the expanding rivet at marked points.

Fold wheel arch panel (1) to one side.

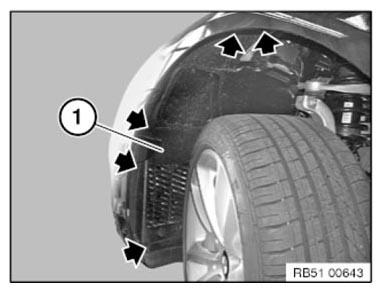

Fig 1: Locating Wheel Arch Panel Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Unclip ultrasonic transducer from retaining tabs (2).

Installation note:

Retaining tabs (2) must not be damaged!

Make sure ultrasonic sensor is securely seated.

Before installation of ultrasonic sensor on wiring harness, clean plug connection!

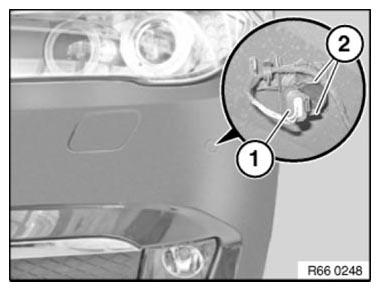

Fig 2: Identifying Plug Connection With Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 3: Identifying Rubber Ring And Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
