41 11 150 Cover For Frame Side Member (Part Replacement Between A And B Pillar)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, 2012 BMW 760Li, and 2011 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read relevant service information under BODY .

The following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) B-pillar with entrance

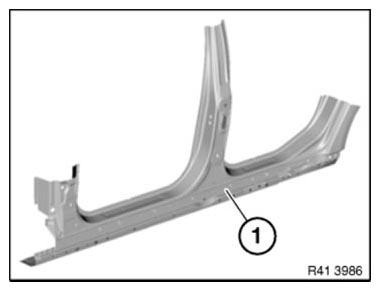

Fig 1: Identifying B-Pillar
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension a = approx. 70 mm behind 25 mm dia. hole.

Dimension b = approx. 180 mm in front of Ø 25 mm hole.

Open welded connections in areas (1) and (2).

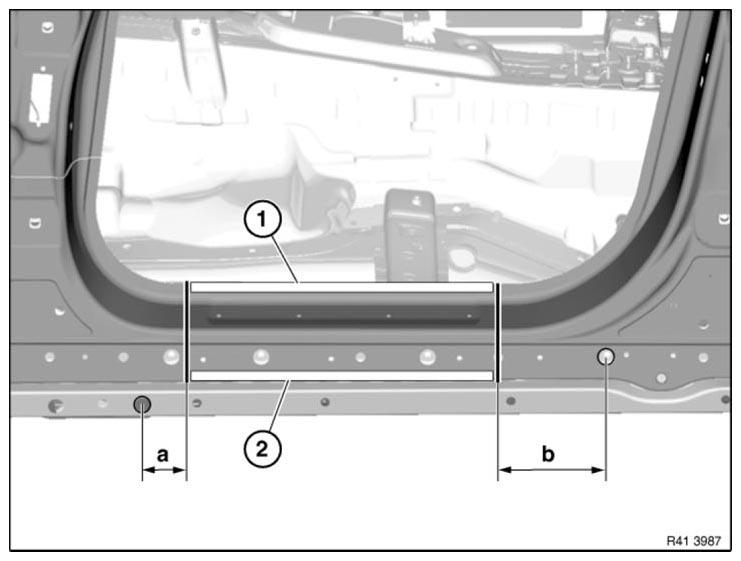

Fig 2: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mark new part in accordance with severance cuts on vehicle and cut.

Separate welded connections on new part to match vehicle.

Weld in REINFORCEMENT PLATES at all severance cuts.

Apply repair welding spots in area (1) to existing welding spots on vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.
