51 47 162 Removing And Installing/Replacing Right Luggage Compartment Wheel Arch Trim

Necessary preliminary tasks

• Remove TRIM ON REAR APRON
• Remove FLAP IN LUGGAGE COMPARTMENT PANEL
• Fold down backrest for right rear seat

Version with bag holder:

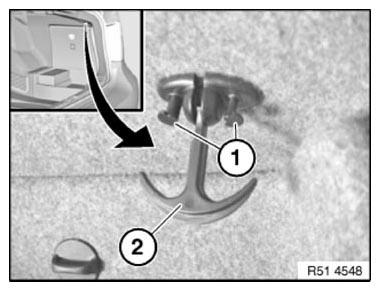

Pull expander rivets (1) out of bag holder (2) and remove bag holder (2).

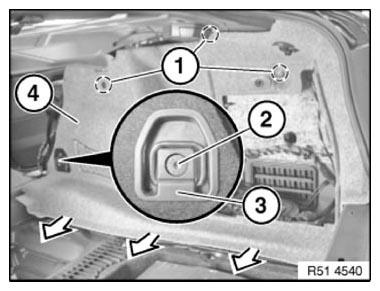

Release clips (1).

Release screw (2) and remove cover (3).

Feed out luggage compartment wheel arch trim (4) in direction of arrow.

Installation:

Make sure luggage compartment wheel arch trim (4) is correctly seated on rest side section and side panel.

Replacement

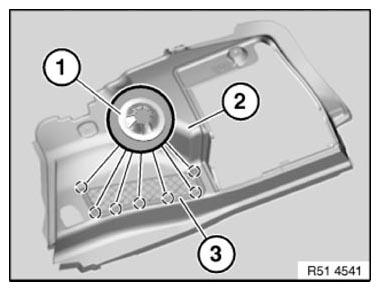

If necessary, release retainers (1) on back of luggage compartment wheel arch trim (2) and remove securing net (3).
