52 26 070 Removing And Installing/Replacing Filler Element

Reach between filler element (1) and backrest.

Unclip filler element (1) towards front and lift out.

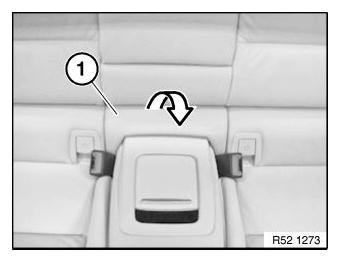

Fig 1: Uncliping Filler Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert filler element behind guide of rear seat.

Press down filler element firmly.

Metal eyelet must snap noticeably and audibly into place on retaining clip (1).

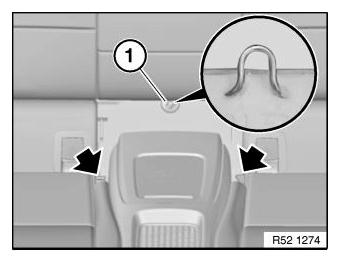

Fig 2: Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.
