51 45... Replacing Side Cover On Instrument Panel

Special tools required:

• 00 9 340

Necessary preliminary tasks

• Pull off mucket of front door in area of cover

Unclip cover (1) with special tool 00 9 340 in direction of arrow from instrument panel trim (2).

If necessary, disconnect associated plug connection.

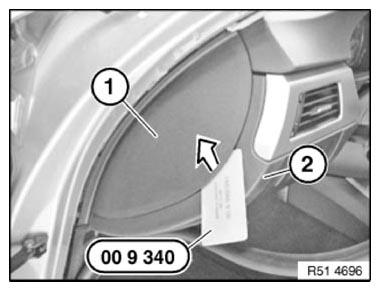

Fig 1: Removing Cover With Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) of cover (2) must not be damaged.

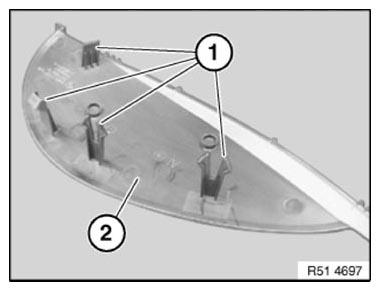

Fig 2: Catches Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing version with Isofix system version:

Remove SWITCH FOR PASSENGER AIRBAG DEACTIVATION .
