51 21... Overview Of Front Door Locks

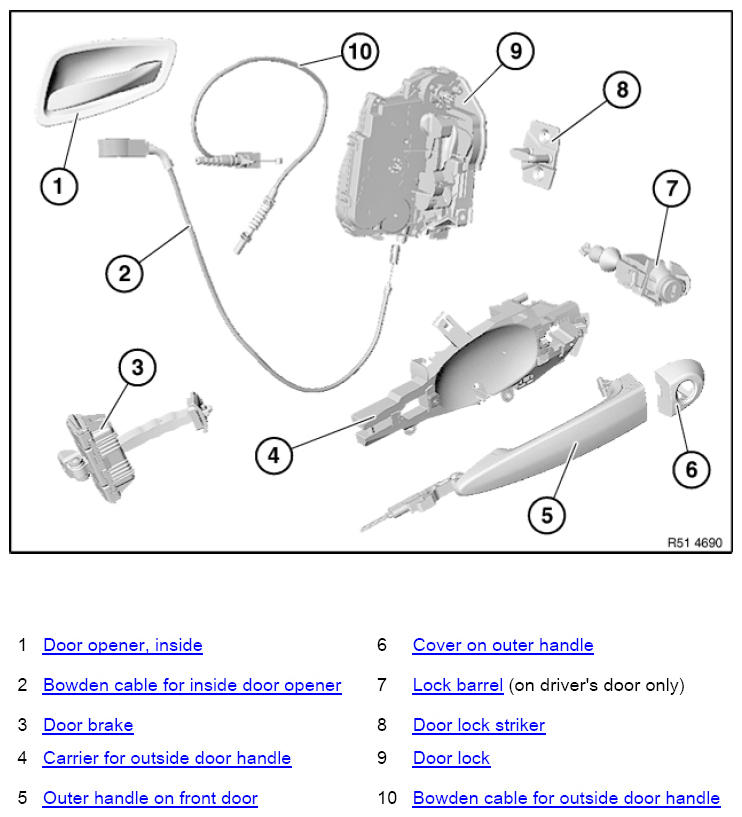

Fig 1: Overview Of Front Door Locks

G09850849

Courtesy of BMW OF NORTH AMERICA, INC.
