51 11 157 Replace Bumper Panel, Front

Necessary preliminary tasks

Version with fog light:

Version with Park Distance Control (PDC):

Pull sealing (1) off in an upward direction.

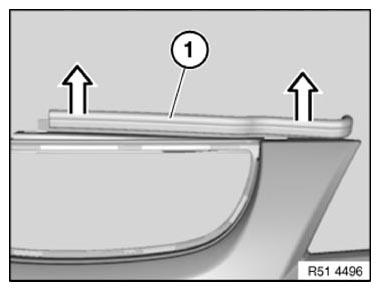

Fig 1: Pulling Sealing Off In An Upward Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sheet metal nuts (1) on right/left.

Version without fog light:

Release screws (2) and remove cover (3).

Remove sheet metal nuts on right/left below cover (3).

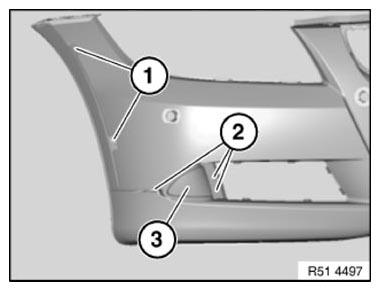

Fig 2: Cover, Screws & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

E90/E91 only:

Press down latch mechanisms (1) at insert (2) and remove insert (2) in direction of arrow.

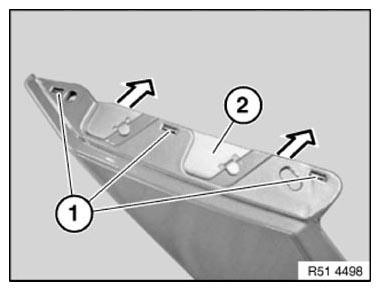

Fig 3: Pressing Latch Mechanisms And Insert

Courtesy of BMW OF NORTH AMERICA, INC.

E92/E93 only:

Press down latch mechanisms (2) at insert (1) and feed out insert (1) in direction of arrow.

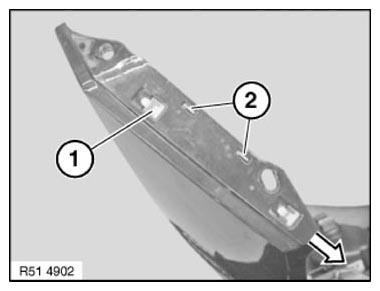

Fig 4: Latch Mechanisms And Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Version with M Aerodynamics package:

Release expanding rivets (1) and remove air guide (2).

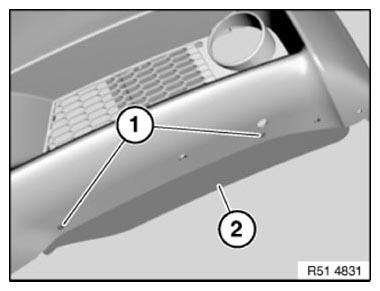

Fig 5: Expanding Rivets And Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Only E92/E93 version with M Aerodynamics package and active pedestrian protection:

Position holder (1) centrally on bumper panel.

Pencil in holes for expanding rivets (2) and drill open with Ø 6.5 mm drill.

Fasten holder (1) with expanding rivet (2).

Remount pedestrian protection sensor.

Fig 6: Holder And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
