Using wire starter

Bend wire end approx. 10 mm and insert in notched tip.

Pierce wire starter with uniform pressure through adhesive bead, wire end (bent part) must be positioned on window glass.

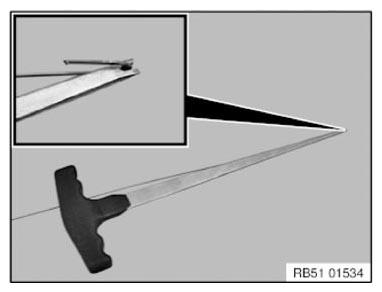

Fig 1: Piercing Wire Starter With Uniform Pressure
G09850955Courtesy of BMW OF NORTH AMERICA, INC.
