Fitting dimensions (E90/E91/E92/E93)

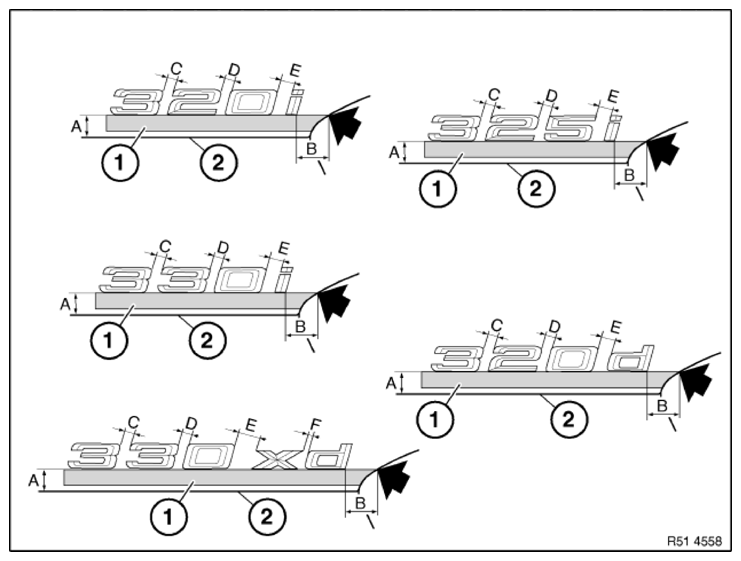

Fig 1: Fitting Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Attach adhesive tape (1) between edge of rear lid (2) and top edge "A". Mark out measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).

Dimensions:

E90 A = 25.2 mm B = 49.3 mm

E91 A = 26.6 mm B = 65.1 mm

E92 A = 21 mm B = 49.6 mm

E93 A = 20 mm B = 52.7 mm

NOTE: Measurements C, D and E are for information purposes only, as determined by carrier film.

316 i, 318 i, 318 d: C = 4.8 mm, D = 7.2 mm, E = 11.6 mm

320i...335i: C = 7.2 mm, D = 7.2 mm, E = 11.6 mm

320 d...330 d: C = 7.2 mm, D = 7.2 mm, E = 11.6 mm

320 si, 325 xi, 330 xi, 330 xd: C = 7.2 mm, D = 7.2 mm, E = 10.6 mm, F = 4.8 mm

M3 only:

Attach adhesive tape (1) between edge of rear lid (2) and measurement "A".

Mark out measurement "B" at top edge of adhesive tape (1) to outer edge of rear lid.

E90:

A = 21 mm

B = 147 mm

E92/E93:

A = 21 mm

B = 139 mm

Fig 2: Adhesive Tape Between Edge Of Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Measurement "C" is for information purposes only, as it is determined by carrier film.

C = 5.9 mm
