32 31 102 Replacing Steering Spindle Sleeve

Necessary preliminary tasks

Remove lower section of steering spindle . See 32 31 070 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING SHAFT ; 32 31 070 REMOVING AND INSTALLING/REPLACING STEERING BOTTOM STEERING SHAFT (ALL-WHEEL DRIVE VEHICLE) or 32 31 070 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING SPINDLE

Push steering spindle into steering column.

Pop sleeve (1) out of bulkhead, press together and remove.

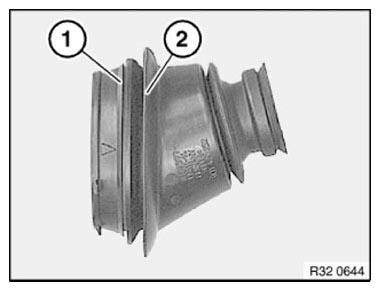

Fig 1: Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Detach pull-in lug from sleeve and lubricate gap with silicone grease.

Press sleeve together, slide onto steering column, align to opening in bulkhead and insert in bulkhead.

NOTE: To prevent the sleeve from slipping out and to avoid complaints by the customer about noise, make sure that sealing lip (1) on engine compartment side rests against bulkhead all round and sealing lip (2) in inside the car rests against the damping.

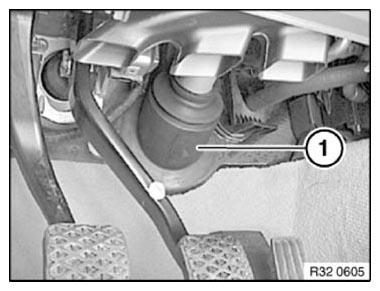

Fig 2: Sealing Lip On Engine Compartment Side

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

CAUTION: Check installation location.
Marking (1) on sleeve must point to stud (2).

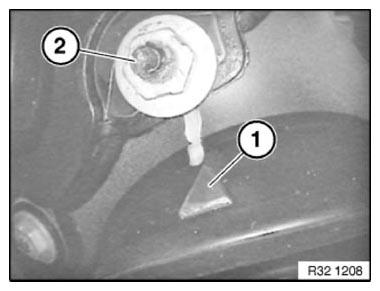

Fig 3: Stud And Marking On Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out steering angle sensor adjustment . See 61 31 996 CARRYING OUT STEERING ANGLE SENSOR ADJUSTMENT or 32 10 005 ADJUSTMENT FOR ACTIVE FRONT STEERING /adjustment for active front steering
