51 47 491 Removing and installing/replacing rear underbody protection

WARNING: Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.

Single-part underbody protection (except E90/E91/E92 AWD)

Release screws (1).

Pull underbody protection (2) in direction of arrow out of bracket (3).

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

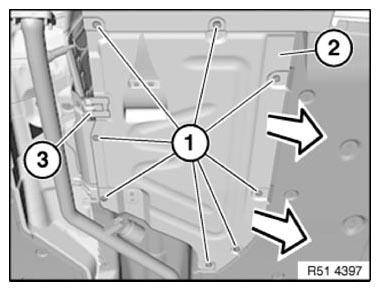

Fig 1: Pulling Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Single-part underbody protection (E90/E91/E92 AWD)

Release screws (1).

Remove underbody protection (2) downwards.

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

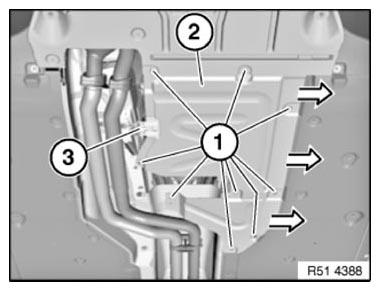

Fig 2: Identifying Single-Part Underbody Protection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Two-part underbody protection

Release screws (1).

Detach underbody protection (2) from bracket (3) and remove.

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

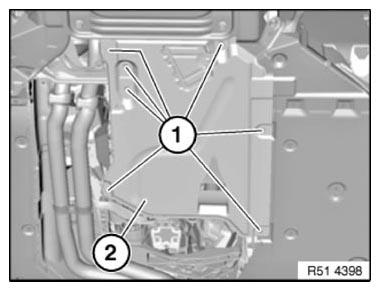

Fig 3: Removing Two-Part Underbody Protection
