31 51 065 Replacing O-ring for bearing block

Necessary preliminary tasks

• Remove BEARING SUPPORT .

Remove O-ring (1) with a suitable tool from bearing block (2).

Installation:

Insert O-ring (1) in groove and coat with front differential oil.

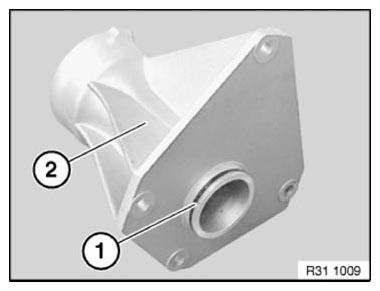

Fig 1: Identifying Bearing Block And O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.
