61 35 201 Removing and installing (replacing) power amplifier (LCPA) (left or right)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect plug connection (1).

Unlock catch (2) and remove power amplifier (3) in direction of arrow.

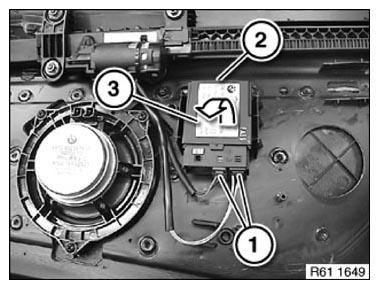

Fig 1: Removing Power Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed guide (1) of power amplifier (2) correctly into locator (3).

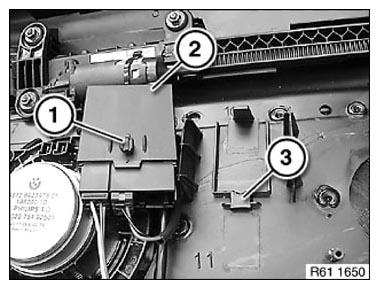

Fig 2: Identifying Power Amplifier Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

NOTE: Power amplifier is coded by means of footwell module (FRM).
