51 43 075 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Right
Special tools required:
Necessary preliminary tasks

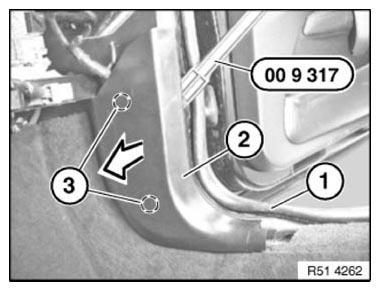

Detach mucket (1) in area of side trim panel (2).
Unclip side trim panel (2) 00 9 317 with special tool in direction of arrow at retaining points (3) and remove.
Installation:

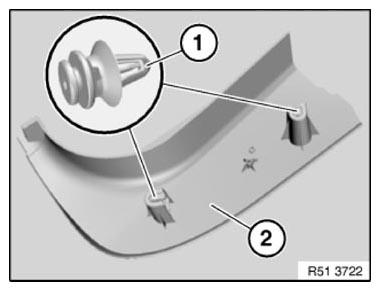

If necessary, lever out clips (1) remaining in bores.
If necessary, replace faulty clips (1).
Position side trim panel (2) preinstalled with clips (1) on associated bores and clip into place.
