51 12 821 Replacing Both Holders For Rear Bumper

Necessary preliminary tasks

NOTE: The operation is described on the left side; proceed in the same way for the right side.

E93 only:

Release antenna holders (1 and 2) from holder (3).

Installation:

If necessary, replace faulty aerial holders (1 and 2).

Fig 1: Aerial/Antenna & Holders

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection at RDC trigger transmitter.

Release screws (1 and 2).

Release nut (3) and remove holder (4).

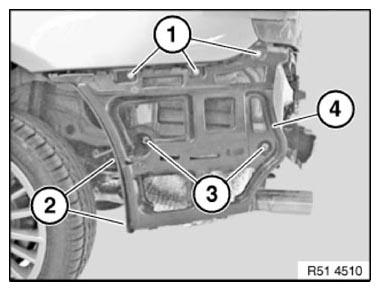

Fig 2: Screws, Nut And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged or missing.

E90/E91 only:

Catches (2) must not be damaged or missing.

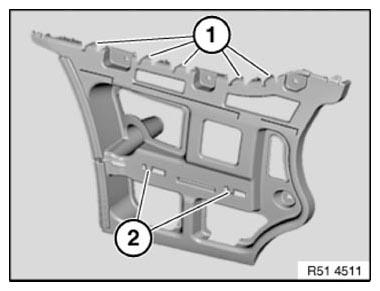

Fig 3: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Predrill fixing holes for RDC trigger transmitter (for Sports package in construction period from 03/09 to 09/09).
