51 23 100 Removing And Installing/Replacing Right Engine Hood/Bonnet Lock

Necessary preliminary tasks

Remove front INTAKE DUCT

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

NOTE: The operation "Disconnect cable for hood/bonnet locks" ends here.

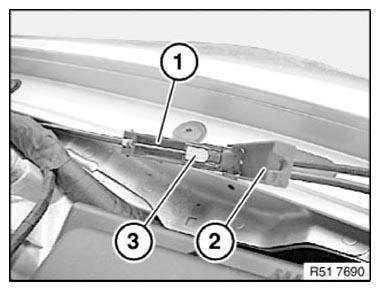

Fig 1: Cover, Bowden Cable & Coupling

G09850915

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2).

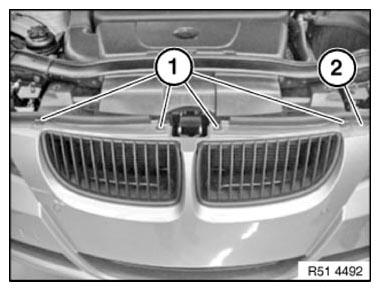

Fig 2: Screws On Bumper Trim

G09850916

Courtesy of BMW OF NORTH AMERICA, INC.

Release Bowden cable (1) from holder (2).

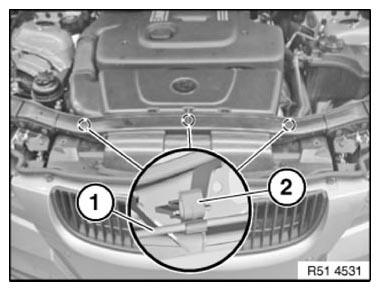

Fig 3: Bowden Cable Holder Locations

G09850917

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 23 2AZ .

Carefully pull bumper trim (2) forwards and feed out hood/bonnet lock (3) with cable.

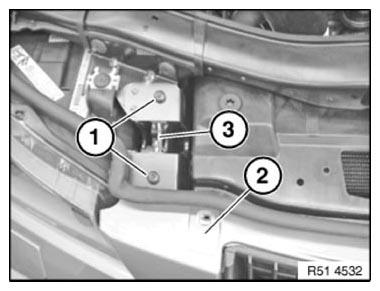

Fig 4: Bumper Trim, Hood/Bonnet Lock And Screws

G09850918

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable (1) from hood/bonnet lock (2).

When replacing cable for hood/bonnet locks

Feed cable (1) out of front wall (3).

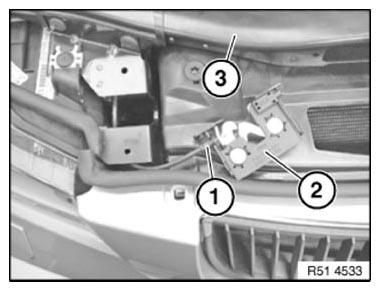

Fig 5: Front Wall, Hood/Bonnet Lock & Cable
